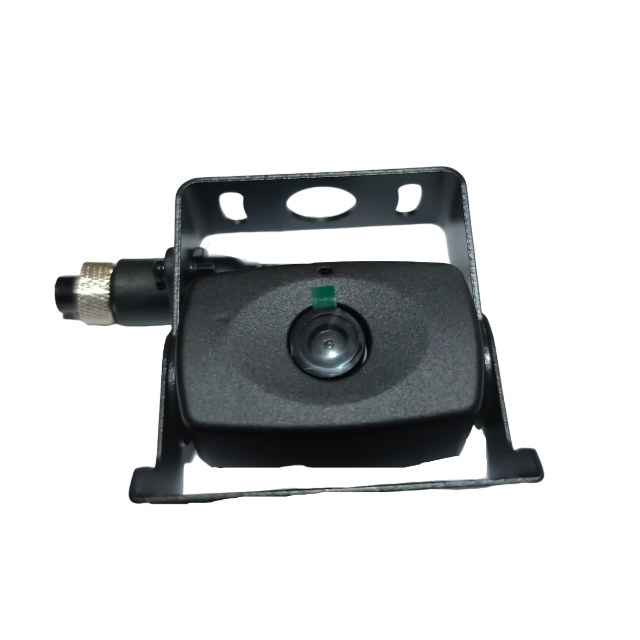

R158 AHD Reverse Camera

The R158 rear-view camera is an essential safety aid in modern vehicles. By installing a high-resolution camera at the rear of the car, it can detect pedestrians or any other obstacles behind the vehicle and alert the driver when potential hazards are identified, thereby reducing rear-end accidents.
● When the driver engages the reverse gear (R gear), real-time video images of the vehicle's rear are automatically displayed on the in-vehicle display screen.
● When in reverse gear, the system automatically activates to detect moving objects (such as pedestrians and cyclists) entering the vehicle's rear blind area.
● When a risk is detected, a visual or auditory warning is issued to the driver.
Product Inquiry
Contact Us

Share to

Product Details

Features:

◆ Wide viewing angle: 146° / 100°
◆ 720P
◆ Power supply: 9~12V
◆ Operating temperature: －30℃-+70℃


Specifications:

Item

Parameters

Camera

Sensing area

1/3 inch

Format

NTSC

Resolution

720P

Minimum illumination

≤ 0.1 lux

Horizontal angle

146° ± 5°

Vertical angle

100° ± 5°

Lens direction

Mirroring

Signal-to-noise ratio

≥ 45 dB

White balance

Auotmatic

Backlight compensation

Auotmatic

Output signal amplitude

1.0Vpp-75Ω ± 5Ω

Operating temperature

－30℃-+70℃

Storage temperature

－40℃-+85℃

Nominal voltage

12V

Voltage range

9V-12V

Color

Black

Output signal format

AHD



 AHD rear camera

In the security surveillance field, our AHD rear camera, with its superior performance and outstanding performance, has become an ideal choice for many users.

High-definition image quality, crystal-clear presentation

The AHD rear camera boasts high-definition imaging capabilities, capturing crisp, detailed images. Utilizing advanced image sensors and processing chips, it achieves resolutions up to 1080p or higher, delivering crystal-clear images even in low-light conditions. Whether monitoring vehicles entering and exiting a parking lot or recording the movements of people inside a store, it provides accurate, clear footage, capturing every detail.

Night vision, day and night protection

This camera is equipped with powerful night vision. Using high-quality infrared LEDs, it automatically activates infrared fill light to maintain clear viewing at night or in low-light conditions. Even in complete darkness, it delivers crisp black-and-white images, providing 24-hour security for your facility.

Waterproof and dustproof, suitable for harsh environments

It has excellent protection, meeting IP66 standards for water and dust resistance. This means the camera can operate reliably in a variety of harsh outdoor environments, including torrential rain, dust, high temperatures, and freezing temperatures. You can confidently install it in locations like parking lots, construction sites, and factories without worrying about environmental damage.

Easy Installation and Simple Operation

The AHD rear camera is easy to install. Simply secure it in place and connect the power and video cables. It also supports a variety of mounting options, such as wall mounting and ceiling mounting, providing flexibility to meet your specific needs. Furthermore, the camera features a simple, user-friendly interface, making setup and operation easy even for users without technical expertise.

With its high-definition image quality, powerful night vision, superior protection, and easy installation, our AHD rear camera provides a comprehensive security surveillance solution, ensuring greater safety and reliability for your facility.
